Started this thread to document the installation of a winch on the 90 Trooper.

1st off took the grille out so I could get to the sheet metal attached underneath.


Naturally every single screw had to be ground off even the ones in the back under the headlights, yay!


This **** has to come out. Mainly because it happens to be right in the way of where I want the winch.


here's a start of the remains, ended up adding a lot more


I added this cross brace for extra support and to mount the upright. Should have figured the winch position out first, it had to come back out. Personally I think this shot is awesome, looks like it's ready to attack :twisted:

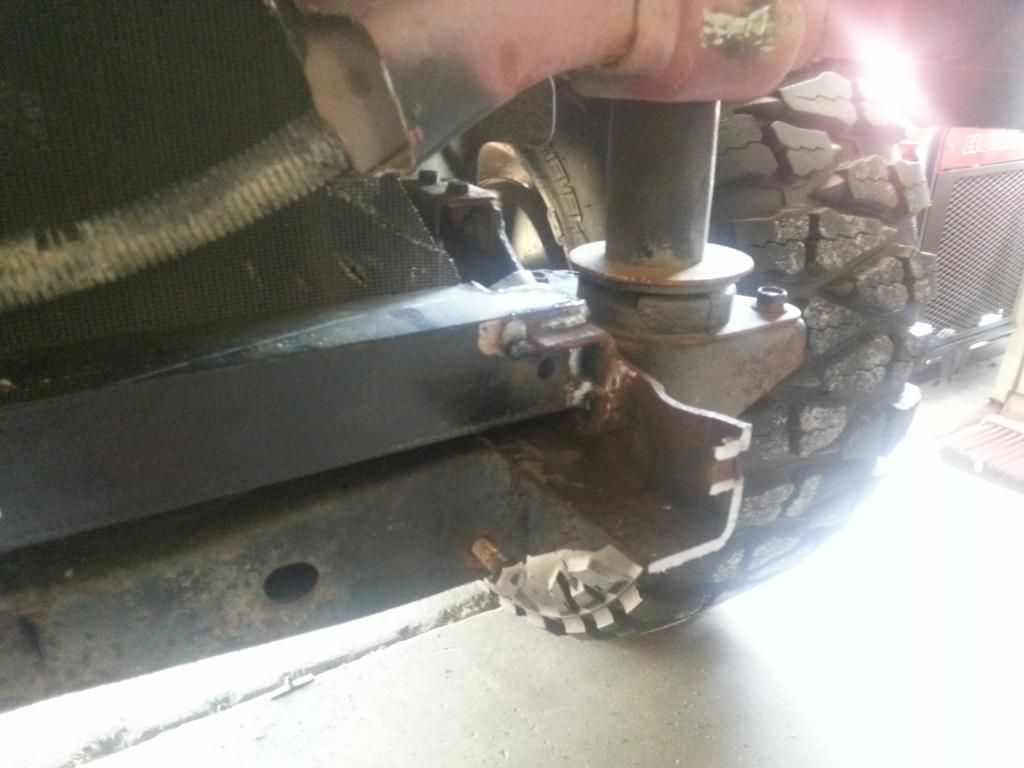

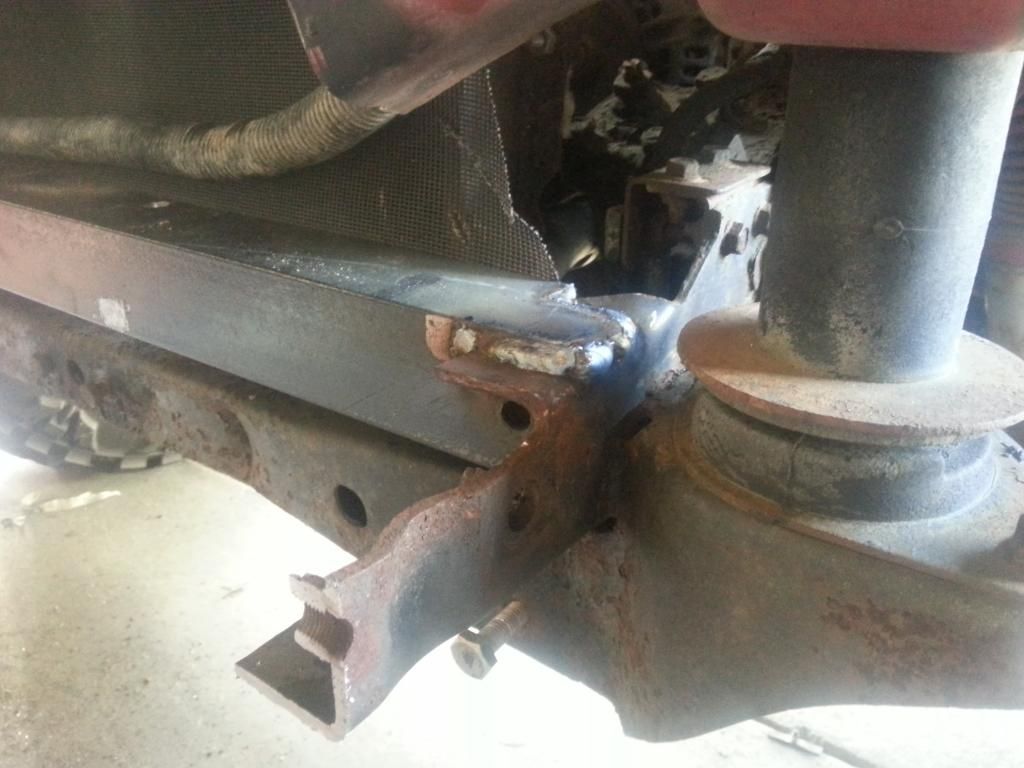

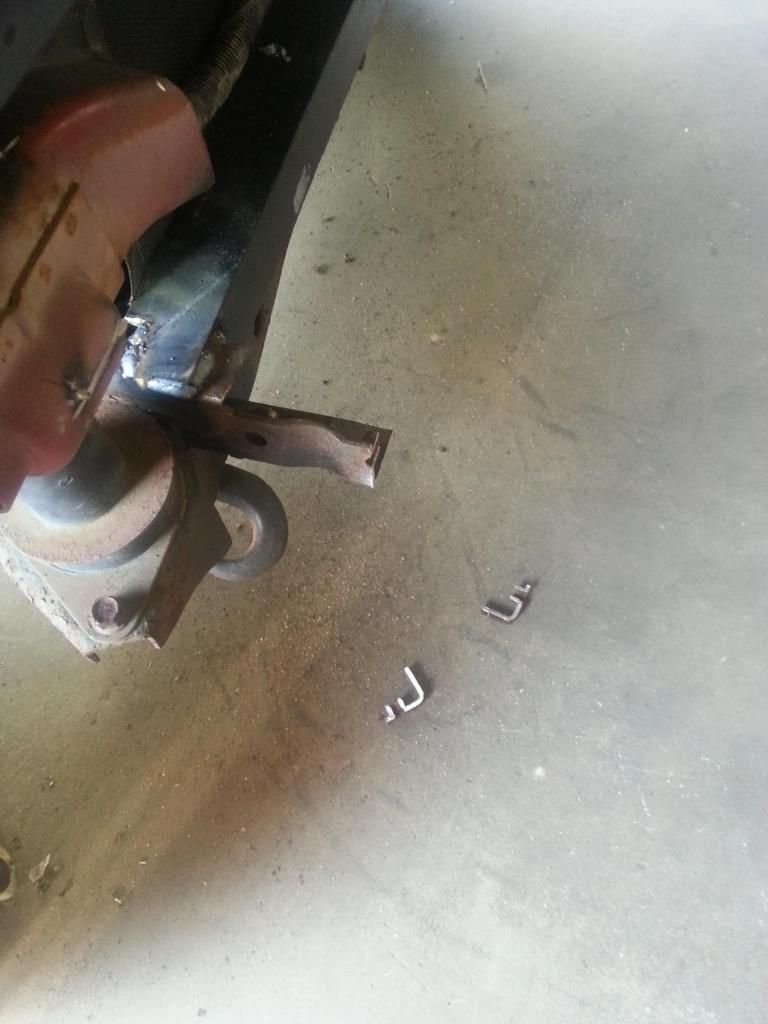

After removing more material :mrgreen: you can see where the frame horns had been cut previously. I'll have to reinforce this area with some extra bracing.


Test fitting the winch to figure out how far back I could drill the holes in my cross bar.


Welded in the rear most cross brace for the mount

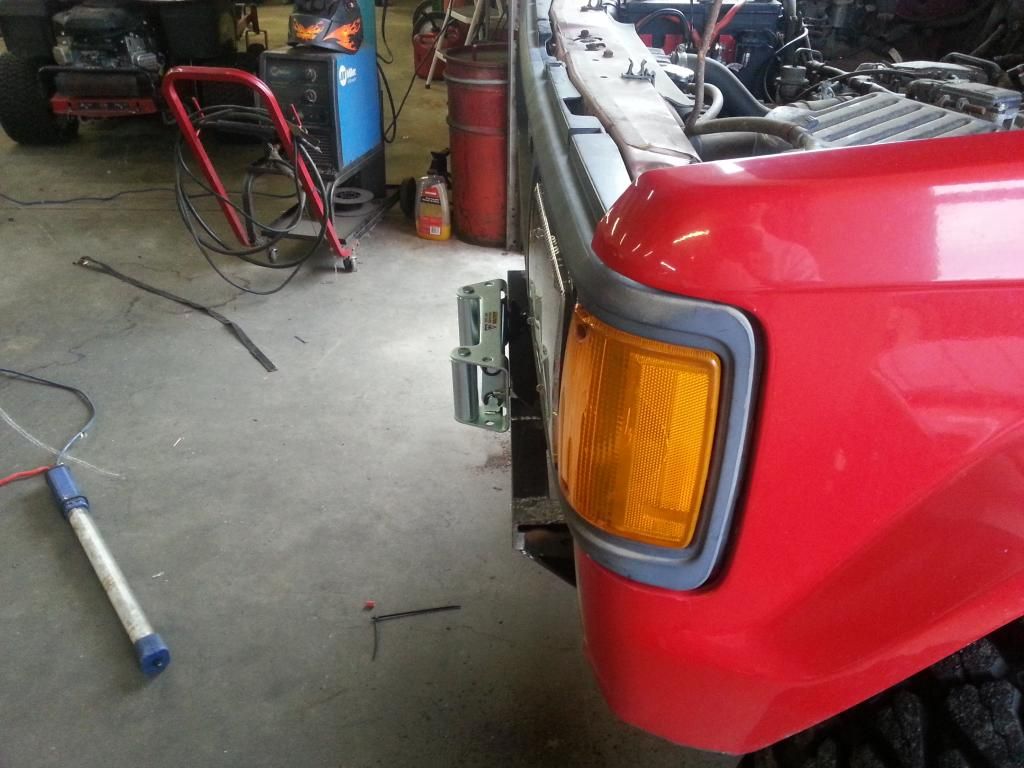

after some measuring realized I need to remove some of the frame horns


my welds are for sure not going to win awards but they'll hold

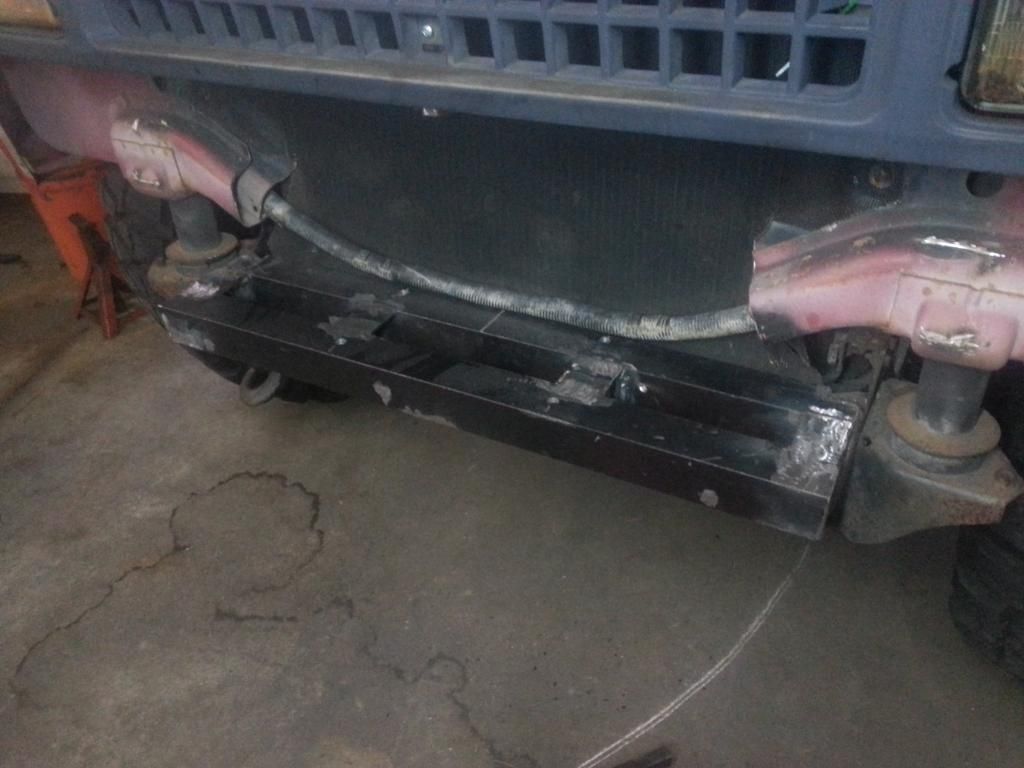

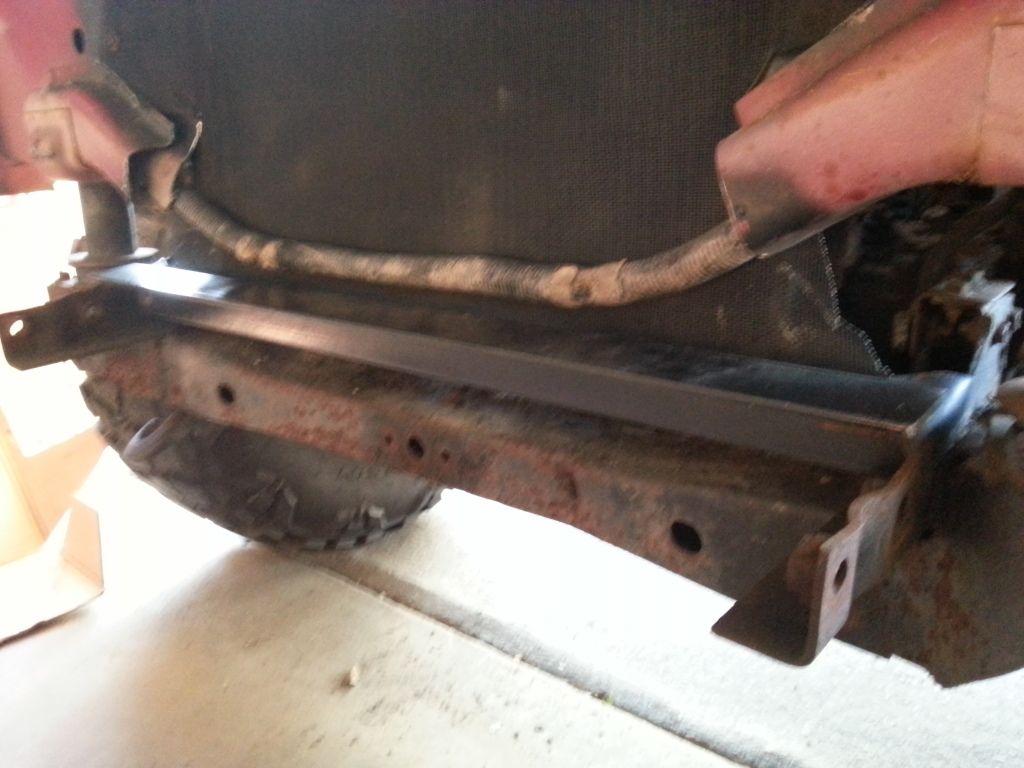

added the front cross brace, this is probably my best weld ever, looks scary with so little metal holding it, but trust me reinforcement is on the way.


made some braces to go between the front and back braces. the hole serves no purpose other than I' m recycling my steel


with both of those welded in.

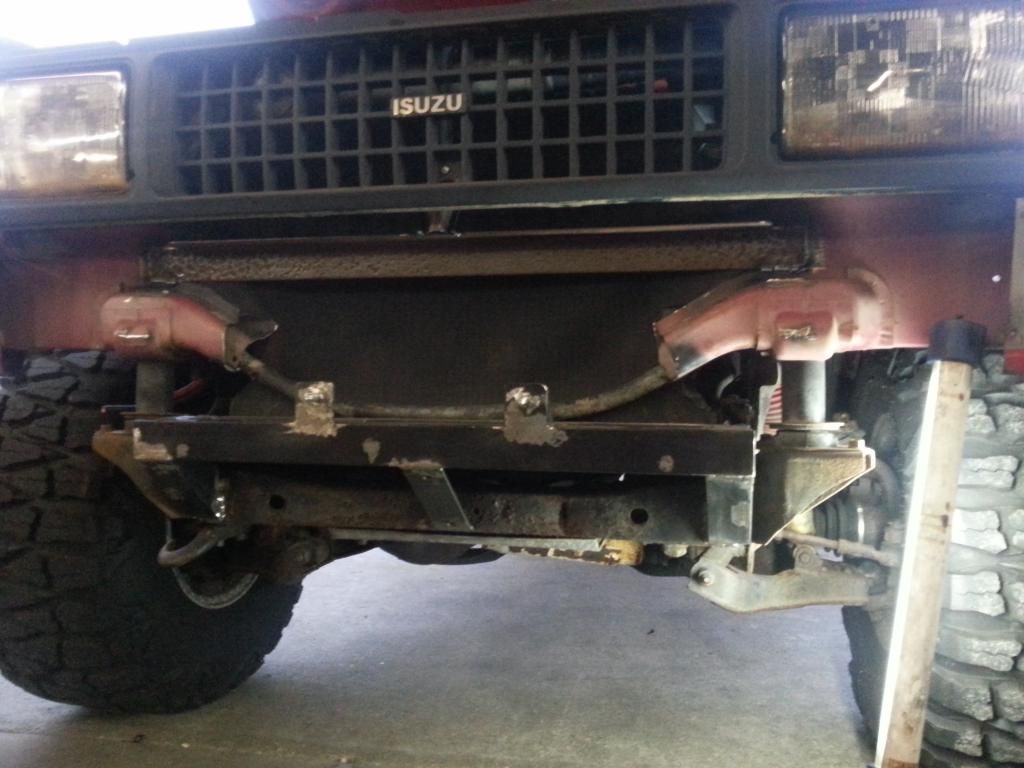

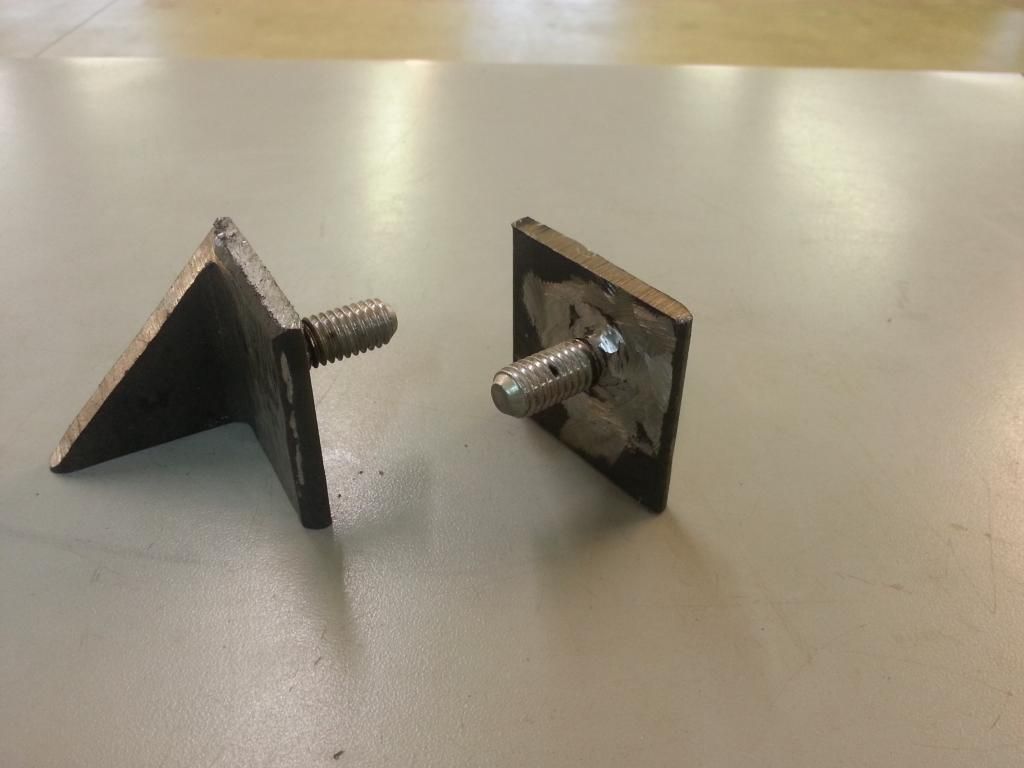

more brackets, these tie the front brace to the lower frame


added 2 more braces on the outsides to clean it up a little


and this is where I left if for today, another day of sporting the channel locks I guess.

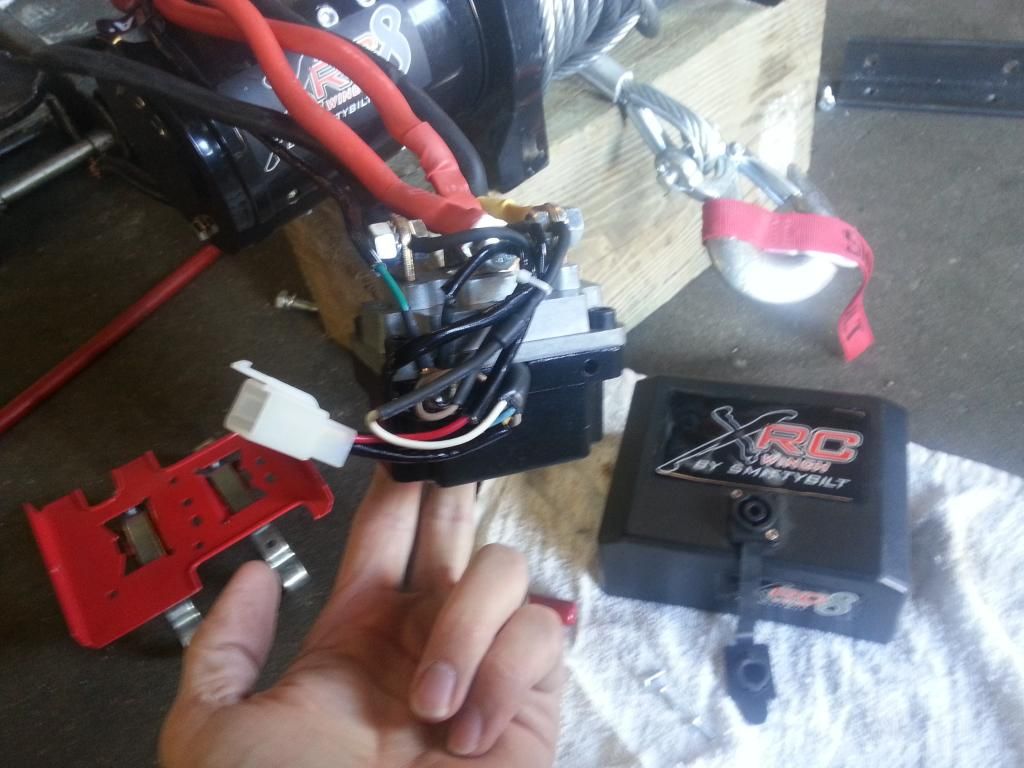

I don't care for the mounting system of the control box, nor do I have room for it under my grille.


Deciding I don't have room for the entire box under the hood, so disassembly is required :twisted:


So I was able to use some of the original box ( 90% of the base, and about 10% of the hood ) the rest goes to the scrap pile

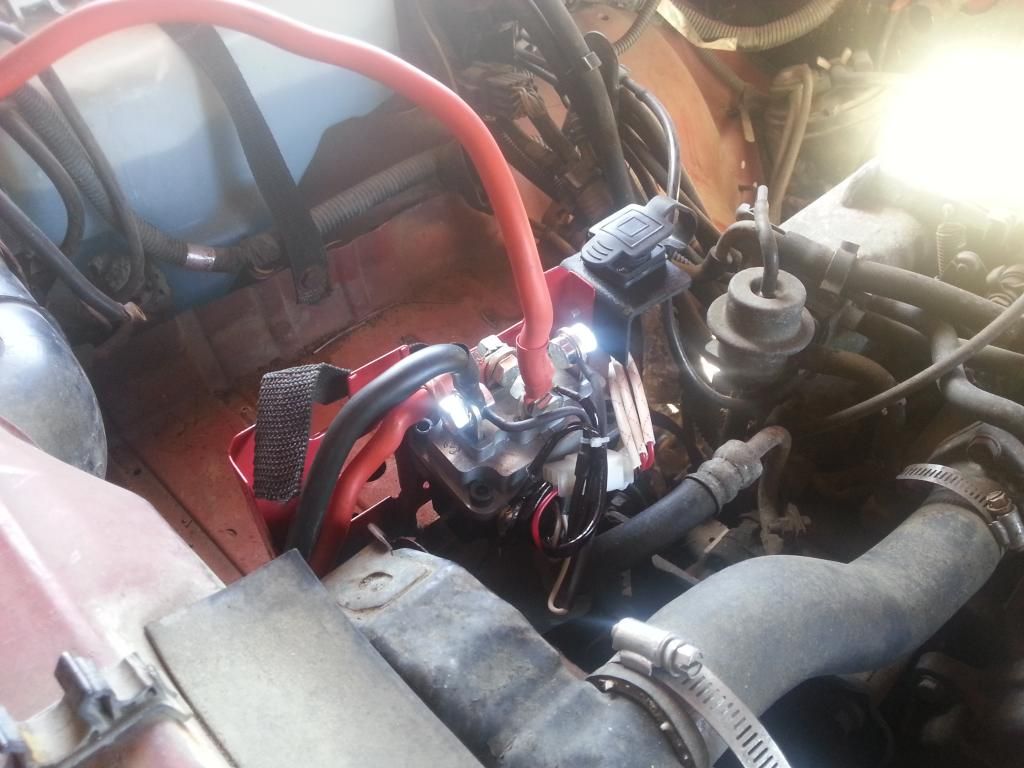

Welded the base to the side of the battery tray, mounted the solenoid, attached the plug to the frame via plastic bracket.


I just don't have enough cable or terminal ends yet


I stopped by carquest during lunch :D


Made some brackets for the fairlead. Dropped a 5 lbs chuck of steel on the top of my foot doing this one :shock: should've been wearing boots vs shoes.

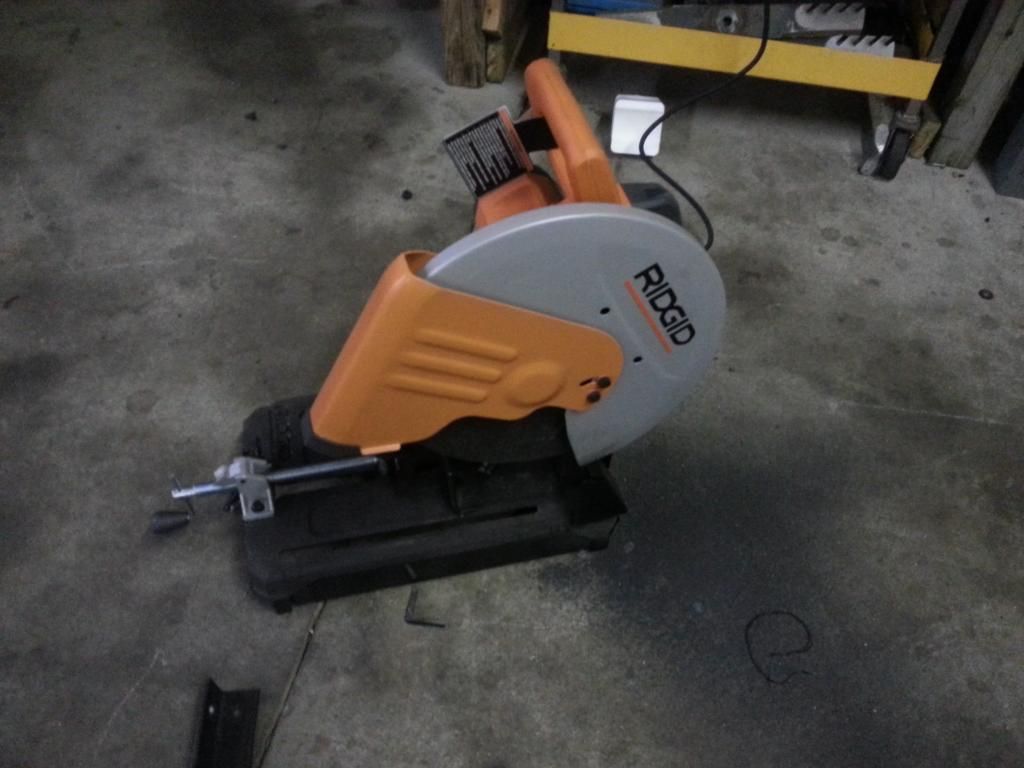

Sometime during cutting steel for the above brackets, I realized I bought a cut off saw a couple of weeks ago. :evil: So to date I've made all these cuts with a die-grinder or sawzall. I've used this for only about 5%.......what a goob :lol:


Welded on the brackets


now this is starting to look better :twisted:

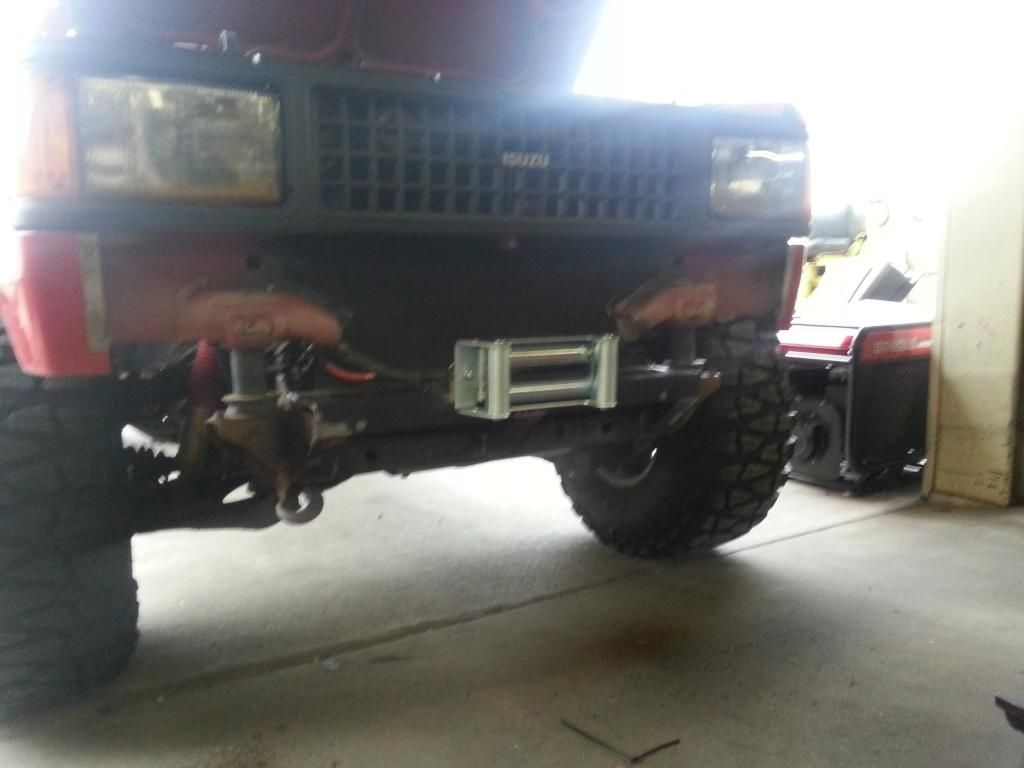

another side shot, this one with the roller fairlead........I really need to get a hawse


finally mounted the cross brace for the body, after making sure I could get the winch into place this time :oops:

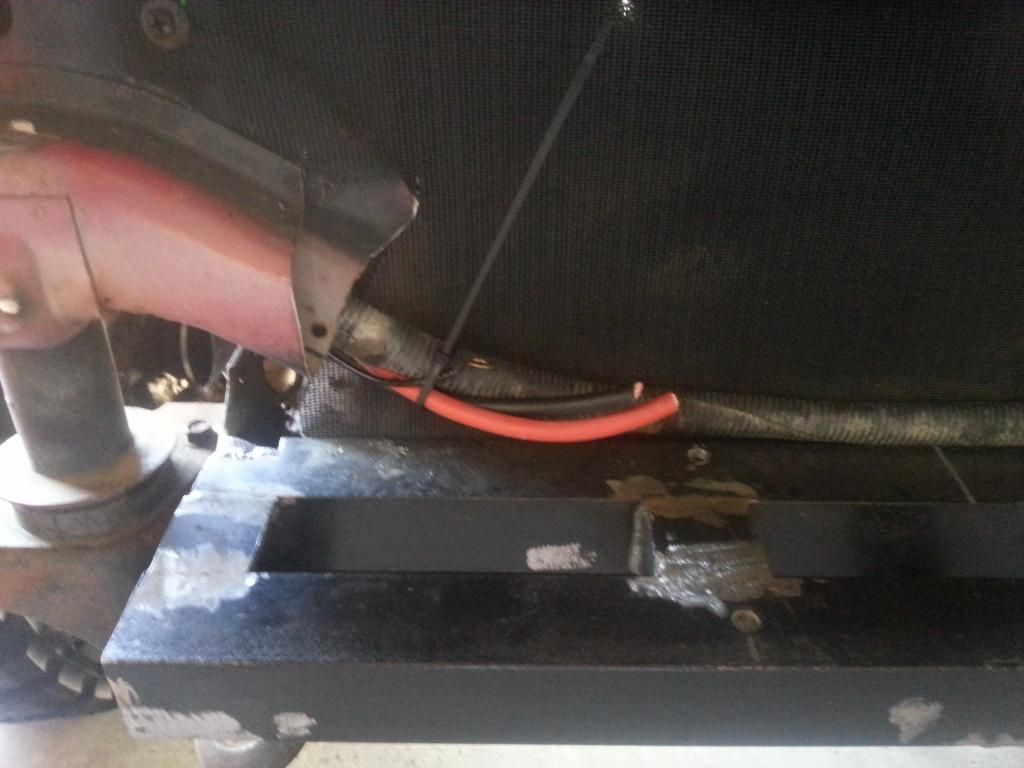

Ran 2 more wires I was lacking the correct terminals for. Then primed and painted everything. Time to let it dry while I try to catch up on some other loose ends.

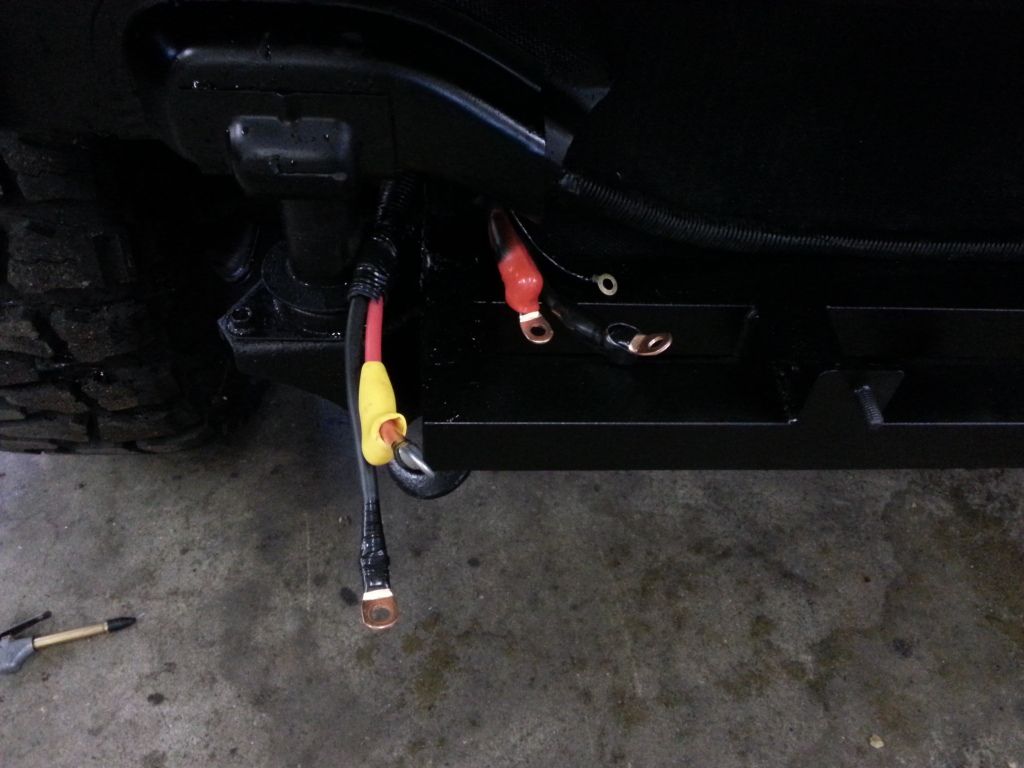

all the wires needed, with boots and taped up as need


hooked up the wires and installed in the cradle


tied up all the wiring for the solenoid


cut the lower radiator cover and painted


welded the panel back since all the bolts broke, masked off for painting

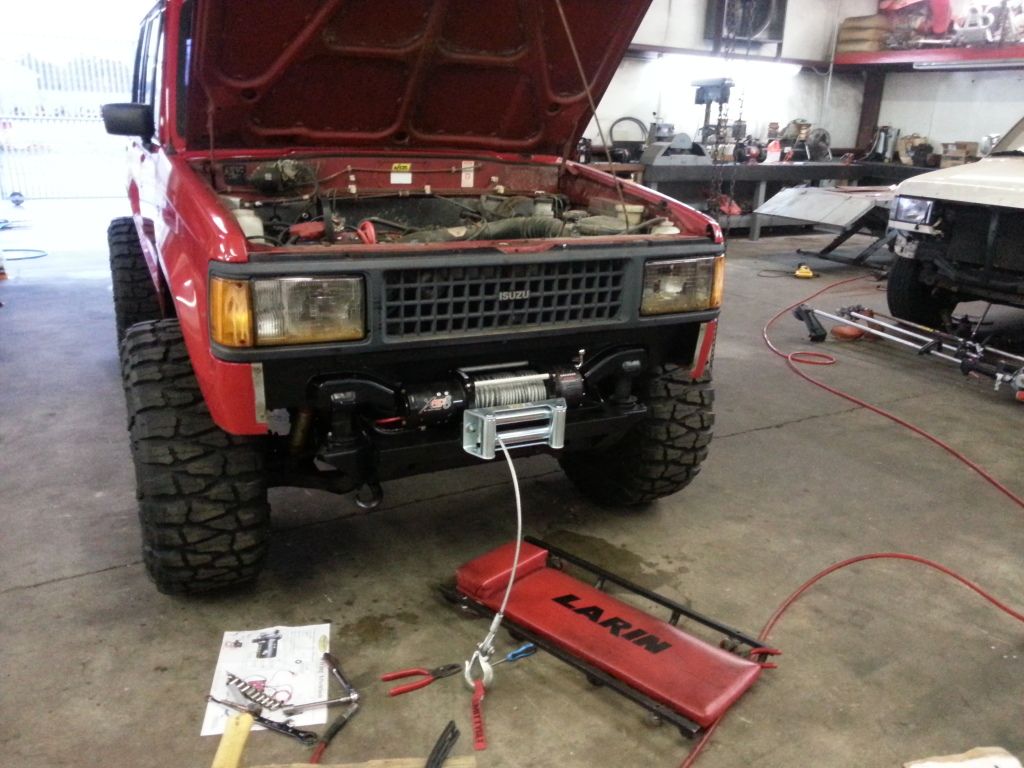

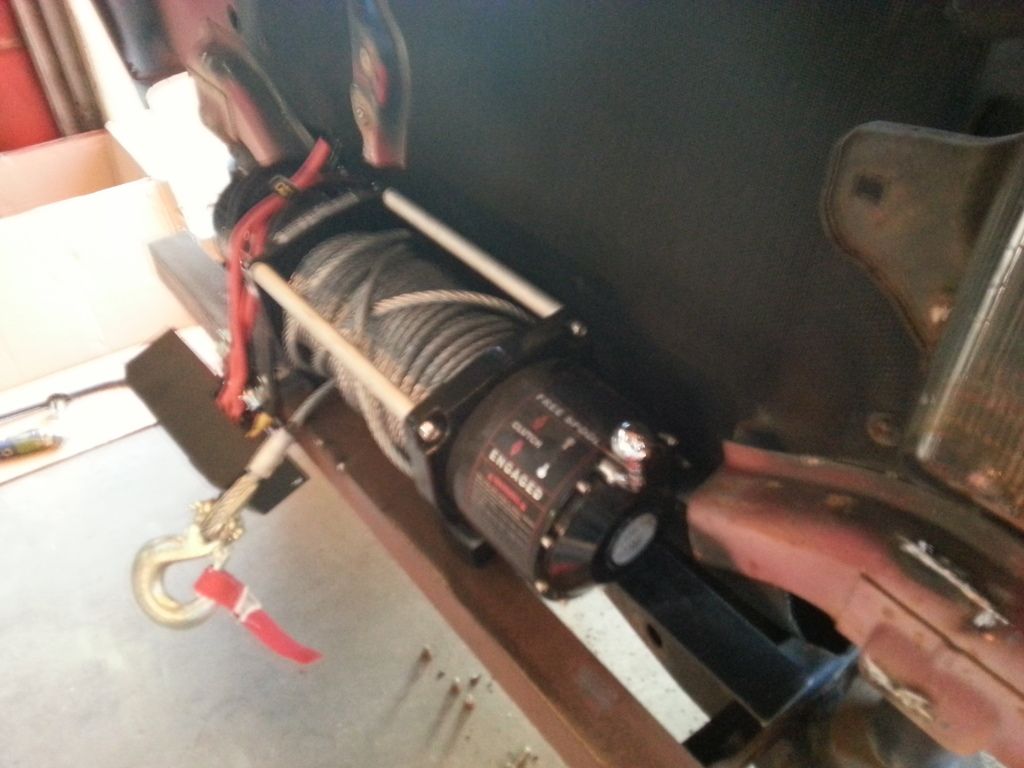

Done and tested

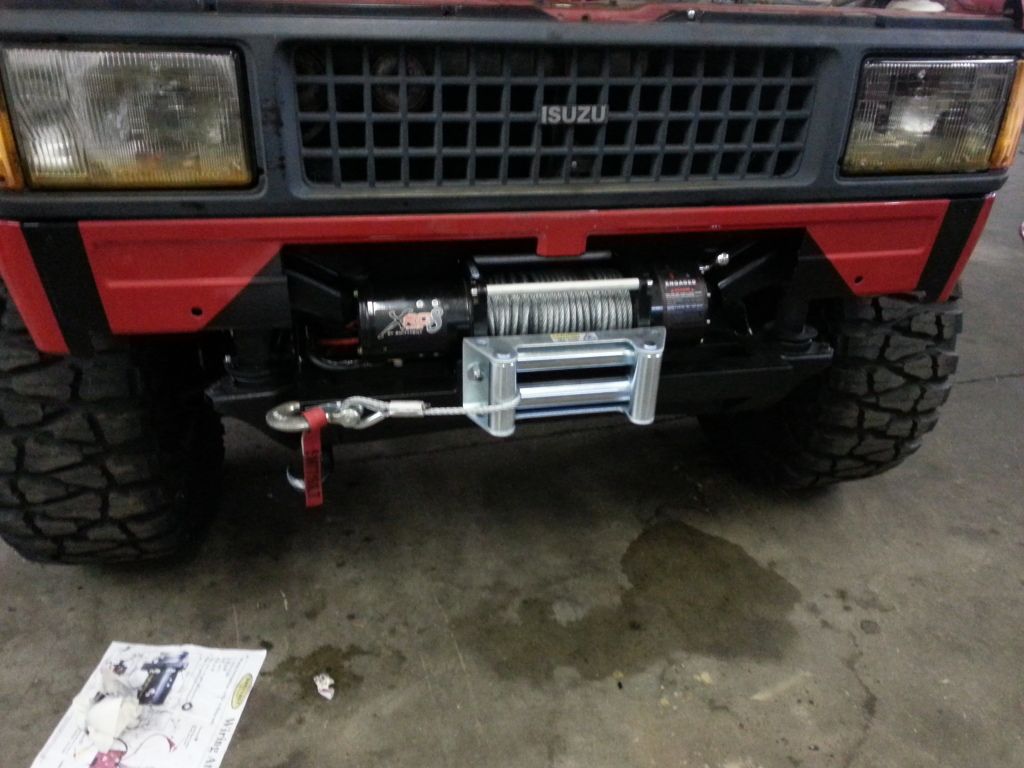

finished pic for the real world :D


·
